| Specifications |
|---|
| M/E Buses |
2 M/E (HD/SD) |

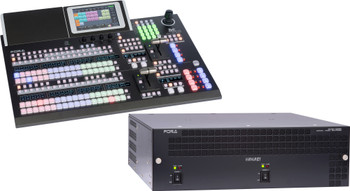

| HVS-492OU |
2 M/E 18 buttons |
| Video Formats HD-SDI |
1080/59.94i, 1080/50i,
1080/29.97PsF, 1080/29.97p,
1080/25PsF, 1080/25p,
1080/24PsF, 1080/24p,
1080/23.98PsF, 1080/23.98p,
720/59.94p, 720/50p;
3G-SDI: 1080/59.94p, 1080/50p (Level-A) |
| Video Inputs HD-SDI |
1.5 Gbps, BNC x 16, 75Ω
(frame synchronizer x 16, re-sizing engine x 4); 3G-SDI: 3 Gbps |
| Number of Video Input Standard |
16 (SDI only), Max.: 40
(varies depending on optional configuration) |
| Video Outputs HD-SDI |
1.5 Gbps, BNC x 8, 75Ω
(PGM x 2, AUX x 6) 3G-SDI: 3 Gbps, HDMI (AUX) x 1
(HDCP-incompatible. AUDIO support) |
| Number of Video Outputs Standard |
9 (SDI x 8 + HDMI x 1) / Max.: 22
(varies depending on optional configuration) |
| AUX Standard |
6, Max.: 12 * Effect transitions available for all AUX signal changes |
| Processing |
4:2:2, digital component |
| Quantization |
3G/HD/SD-SDI: 10-bit |
| Multi Viewer Output Channels |
3, Split display: 2/4/5/7/9/10/11/14/15/16
(Max. 49 via HDMI 2.0 Level B), Display: Title,
tally, audio level meter |
| Process |
Amplifier Equipped with all inputs |
| Still/clip Store |
4-channels (stores up to 1796 frames (60 seconds) at 1080i) |
| 2.5D DVE Standard |
16 (1080/59.94p, 50p: Standard: 8, Max.: 16) |
| Transitions Available Controller |
Fader controller,
AUTO button,
CUT button,
Type: MIX or WIPE (DVE included) |
| Genlock Input BB |
0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-level sync: 0.6 Vp-p,
75Ω, BNC x 1, loop-through (to be terminated with 75Ω terminator,
if unused) |
| Genlock Output BB |
0.429 Vp-p (NTSC)/0.45 Vp-p (PAL) or Tri-sync: 0.6 Vp-p, 75Ω, BNC x 1 |
| System Phase Adjustment Horizontal |
-1/2H to +1/2H |
| Video I/O Delay |
Minimum Delay: approx. 1.4 H,
approx. 1.7 H at 720/59.94p,
approx. 1.8 H at 720/50p;
0 to 1 frames + Minimum Delay (when FS or input re-sizing engine used)
1 to 2 frames + Minimum Delay
(when FS or input re-sizing engine plus DVE used) 2 to 3 frames + Minimum Delay
(when FS or input re-sizing engine plus output re-sizing engine plus DVE used) |
| External Memory |
SD-CARD slot |
| Interface |
RS-422: 9-pin D-sub (female) x 2;
GPI IN: 25-pin D-sub (female) for 19 inputs;
GPI/TALLY OUT: 25-pin D-sub (female) for 22 outputs;
Ethernet: RJ-45 x 2, HVS-LAN (for OU connection),
PC-LAN (for computer and peripheral device connection) |
| Temperature/Humidity |
32° to 104°F (0°C to 40°C) / 10 to 90% (non-condensing) |
| Power |
AC 100 V to 240 V ±10%, 50/60 Hz |
| Consumption |
16W (100-120V), 16W (220-240V) |
| Dimensions (WxHxD) |
16.93 x 5.19 x 14.82" (430 x 132 x 376.4mm) |
| Weight |
15Lbs (6kg)
(with redundant power supply: approx. 16Lbs (7kg)) |
| Consumables/Replacement Timing |
(constant use at room temperature):
HVS-490: Power unit/approx. 5 years, Redundant power supply unit/approx.
5 years, Cooling fan/approx. 4 years;
HVS-491OU/492ROU/492OU/492WOU:
Power unit/approx.
5 years, Redundant power supply unit/approx. 5 years |
