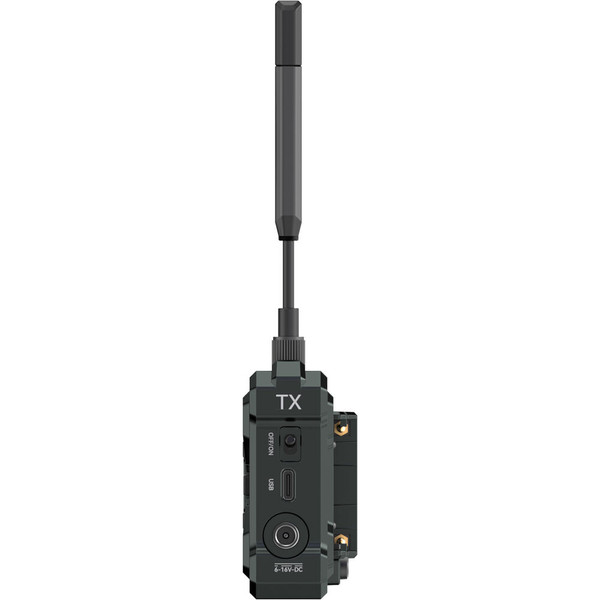

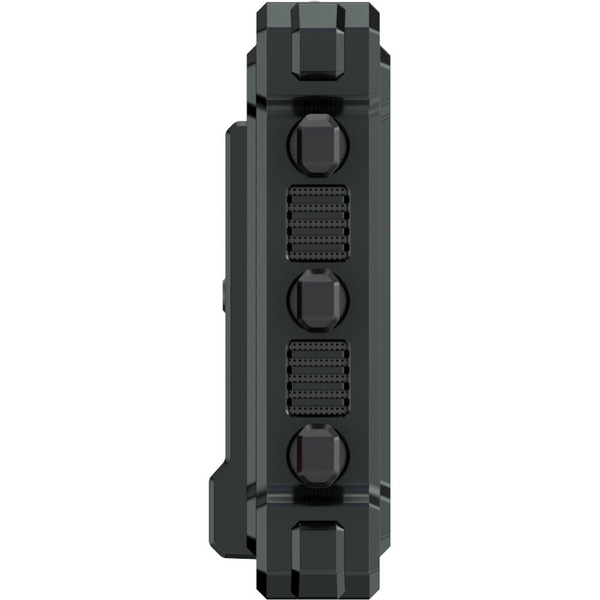

Hollyland PYRO S 4K HDMI/SDI Wireless Video Transmission System
The Hollyland Pyro S Wireless Video Transmission System delivers reliable, low-latency 4K wireless video for professional productions. Supporting both HDMI and SDI connections, this versatile kit includes a transmitter, receiver, seven antennas, a USB-C adapter, DC power adapter, and an adjustable shoe mount. With up to 4K30 transmission over HDMI, 1080p60 over SDI, and latency as low as 50 ms, the Pyro S is built for filmmaking, live events, broadcasting, and content creation.
Key Features
- Transmit up to 4K UHD video at 30 fps via HDMI and 1080p60 via SDI.
- Supports line-of-sight wireless transmission up to 1,300 feet with ultra-low 50 ms latency.
- Broadcast Mode allows one transmitter to connect with up to four receivers at distances up to 650 feet.
- Includes HDMI and SDI input on the transmitter with HDMI and SDI output on the receiver.
- Complete kit includes transmitter, receiver, seven antennas, USB-C adapter, DC power adapter, and adjustable shoe mount.
Flexible Wireless Monitoring
Designed to adapt to a variety of production environments, the Pyro S supports multiple monitoring configurations. In standard mode, one transmitter can connect to up to two receivers and two mobile devices while maintaining transmission distances up to 1,300 feet. Enable Broadcast Mode to connect a single transmitter to as many as four receivers, making it ideal for productions that require multiple monitoring positions.
High-Quality Video with Low Latency
The Pyro S delivers sharp, detailed images while maintaining exceptionally low latency for real-time monitoring. Users can choose between HD Mode, which prioritizes image quality with bitrates up to 12 Mb/s, or Smooth Mode, which dynamically reduces latency for fast-paced productions where timing is critical.
Plug-and-Play USB-C Connectivity
Each transmitter and receiver features a USB-C port with UVC support, allowing the system to connect directly to compatible computers without additional drivers. This makes the Pyro S an excellent solution for live streaming, video conferencing, and other USB video applications.
Direct Live Streaming
With RTMP support, the Pyro S can stream directly to popular platforms such as YouTube, Zoom, Twitch, and TikTok by connecting a network adapter and entering your streaming credentials.
Automatic Channel Optimization
An integrated smart channel scanner automatically selects the best available frequency during startup to help maintain a stable connection. Users can also monitor channel conditions in real time from the receiver, ensuring reliable performance even in challenging wireless environments.
Simple Setup
Preset grouping and pairing allow transmitters and receivers to connect quickly without repeated manual configuration. The streamlined setup process helps crews spend less time configuring equipment and more time capturing content.
Power Options
The Pyro S can be powered using the included DC power adapter or an optional L-series battery with a compatible battery plate, providing flexibility for both studio and location productions.
