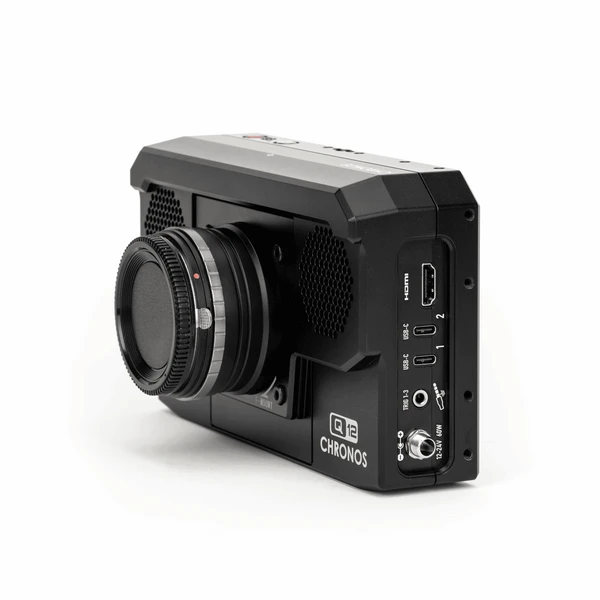

| Kron Technologies Q12 Specs |
|---|
| CAMERA |
|---|
| Model |
Color
|
| Imaging |
2560 x 2016 @ 2,313 FPS
|
| Memory |
128GB
|
| Record Time (in seconds) |
11.5 seconds (128GB) at max resolution |
| Lens Mount |
PL
|
| Backfocus |
Field adjustable via included shim kit
|
| IR Filter |
650nm, user removable
|
| Display |
5" 800x480 touchscreen, 1000 nit daylight visible
|
| Enclosure |
Anodized CNC-machined aluminum
|
| Cooling |
Active cooling, variable-speed fans
|
| Dimensions |
188mm x 111mm x 53mm (7.40" x 4.37" x 2.08") w/o lens
|
| Weight |
1.32 kg (2.91 lbs) without lens
|
| INPUTS/OUTPUTS |
|---|
| Power Input |
12-24V 60W (5.5/2.5mm barrel jack, positive tip)
|
| Network |
Gigabit Ethernet via USB-C Adapter
|
| Trigger |
2 trigger inputs/frame strobe outputs (4-pin 3.5mm TRRS Connector)
Adjustable input threshold 0 to 6.6V
|
| Video Out (Live) |
4096 x 2160 at 30 FPS
3840 x 2160 at 30 FPS
1920 x 1080 at 60FPS
|
| USB |
USB-C Port 1: 3.2 Gen 1, 5 Gbps (Peripheral)
|
| USB-C Port 2 |
3.2 Gen 2x2, 20 Gbps (Peripheral, SSDs)
|
| VIDEO FORMATS |
|---|
| Compressed |
Standardized H.264 AVC, or H.265 HEVC MPEG-4 Video Files
|
| RAW |
Standard Adobe CinemaDNG raw files
|
| TIFF |
Standard TIFF files with timestamps
|
| STORAGE |
|---|
| Internal |
Internal 1 TB NVMe SSD, SD Card
|
| External |
USB-C SSD
|
| Network |
SMB/NFS network drives
|
| IMAGE SENSOR |
|---|
| Sensor Type |
CMOS APS-C
|
| Resolution |
2560 x 2016 @ 2,313 FPS Maximum
128 x 32 @ 29,515 FPS Minimum
|
| Speed |
11.9 Gigapixels per second
|
| Dimensions |
23.04mm (H) x 18.14mm (V); 29.3mm Diagonal
|
| Crop Factor |
1.5X
|
| Pixel Pitch |
9 μm
|
| Sensitivity (ISO) |
Color - ISO 80 to 640
|
| Shutter |
Electronic global shutter
1/fps to 4us (1/250,000 s)
|
| Dynamic Range |
11.26 stops (67.6 dB) in 12-bit mode
8.35 stops (50.1 dB) in 8-bit mode
|
| Bit Depth |
8-bit, 10-bit, 12-bit User Selectable
|
| TRIGGER MODES |
|---|
| End Trigger |
Records until a defined delay after the trigger
|
| Toggle |
Starts and stops with button press
|
| Exposure Trigger |
External signal sets synchronization frame-rate
|
| Shutter Gating |
External signal sets the exposure synchronization and frame-rate
|
| Frame Sync Output |
Outputs a signal indicating its frame-rate and exposure
SOFTWARE
|
| API |
HTTP REST Interface, Open-source codebase
|
| NETWORK CONTROL |
|---|
| Network Control |
REST API via optional Ethernet adapters
|
| RECORDING MODES |
|---|
| Normal |
Records into the ring buffer. Once a trigger occurs, the video can be reviewed and saved.
|
| ASSISTIVE |
|---|
| Focus Aid |
Highlights sharp edges to aid focusing
|
| Zebras |
Rolling diagonal lines indicate clipped (overexposed) areas
|
| Histogram |
Graphically represent the brightness and distribution of light in the image
|
| Overlay |
Displays frame and time information on top of footage
|
| ENVIRONMENTAL |
|---|
| Operating Temperature |
0 °C to +40 °C (32 °F to +104 °F)
|
| REGULATORY COMPLIANCE |
|---|
| USA |
FCC - 47 CFR Part 15
|
