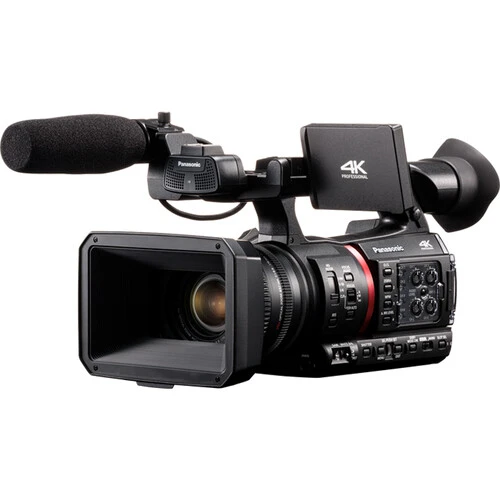

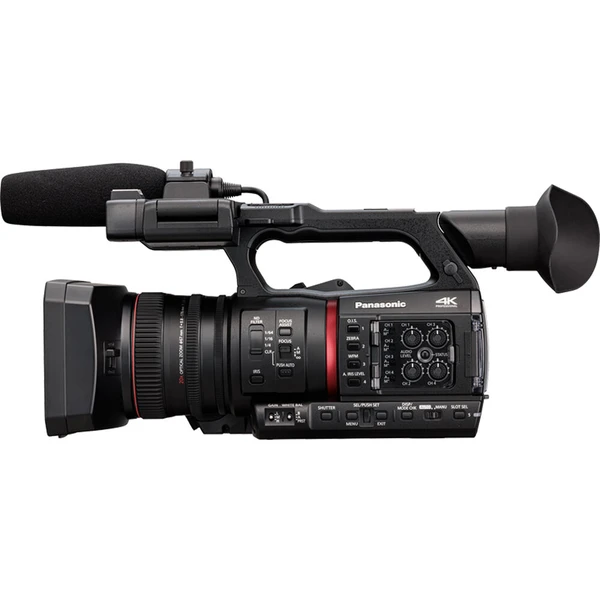

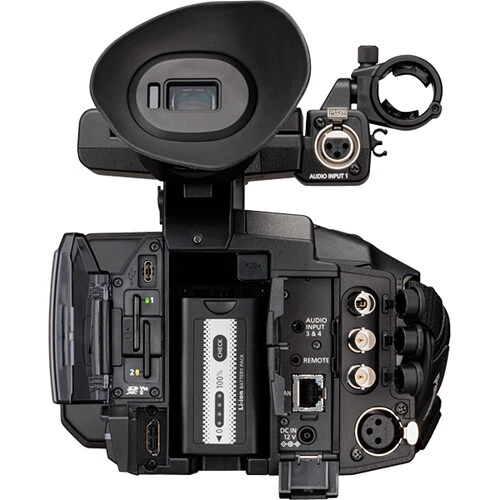

Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
Product Highlights:
- 1"-Type 15MP MOS Sensor
- Up to UHD 4K60, Uncompressed 12G-SDI Out
- 20x Optical, 32x HD/24x UHD 4K i.Zoom
- Intelligent AF, Tracking, Face Detection
- 4-Channel Audio and Genlock Inputs
- HDR and V-Log/HLG Support
- 5-Axis Hybrid Stabilization, O.I.S
- Manual Focus, Iris, and Zoom Rings
- Manual Focus Assist, LCD Touch Focus
- Simultaneous LCD and OLED EVF Display
- Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
Panasonic AG-CX370 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
Panasonic AG-CX370PJ5 UHD 4K Pro Camcorder with NDI|HX2 and Auto-Tracking
The Panasonic AG-CX370PJ5 delivers professional-grade imaging, advanced connectivity, and broadcast-ready workflows in a compact handheld design. Featuring a large 1.0-type MOS sensor, the camera captures stunning 4K video with 10-bit recording for exceptional detail, color accuracy, and dynamic range.
Designed for production professionals, educators, broadcasters, and live event teams, the AG-CX370PJ5 combines a powerful 20x optical zoom lens with three dedicated manual control rings for precise focus, zoom, and iris adjustments. A wide 24.5mm equivalent focal length and i.Zoom capability up to 32x provide the flexibility needed for everything from wide venue shots to tight close-ups.
Built for multi-camera and live production environments, the AG-CX370PJ5 features 12G-SDI output, genlock input, and SMPTE timecode input/output, making it easy to synchronize multiple cameras for broadcast and event workflows. Integrated NDI®|HX2 support, Gigabit Ethernet connectivity, and RTMP, RTMPS, and SRT streaming protocols enable seamless IP-based production and live streaming.
Audio capabilities are equally impressive, with four-channel recording support, dual XLR inputs, a 3.5mm stereo input, and dedicated level controls for each channel, ensuring professional audio capture in any production environment.
Whether you're covering live sports, producing corporate events, streaming worship services, or creating educational content, the Panasonic AG-CX370PJ5 delivers the image quality, connectivity, and workflow flexibility needed for today's professional productions.
Key Features
- 1.0-type MOS sensor with 10-bit 4K recording
- 20x optical zoom lens with 24.5mm wide-angle coverage
- i.Zoom up to 32x in 4K
- Three manual lens control rings
- 12G-SDI output for professional workflows
- Genlock and SMPTE timecode input/output
- NDI®|HX2 support for IP production
- RTMP, RTMPS, and SRT live streaming
- Gigabit Ethernet (RJ45) connectivity
- Four-channel audio recording with dedicated level controls
- Dual XLR inputs plus 3.5mm stereo input
- Remote camera control via AG-ROP app and AK-HRP1010
- Optional wireless operation with AJ-WM50 series module
| Panasonic AG-CX370 Specs |
|---|
| Imaging |
|---|
| Image Sensor |
1"-Type MOS
|
| Effective Sensor Resolution |
15.03 Megapixel
|
| Image Stabilization |
Optical in Integrated Lens
Digital
|
| Built-In ND Filter |
Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters
|
| Capture Type |
Video Only
|
| Exposure Control |
|---|
| Shutter Type |
Electronic Rolling Shutter
|
| Shutter Speed |
1/10000 to 1 Second
|
| Shutter Angle |
3 to 360°
|
| ISO/Gain Sensitivity |
Native: 400 to 12,800
Gain: -3 to 36 dB
|
| Signal-to-Noise Ratio |
Not Specified by Manufacturer
|
| Precise Scan Rate Control |
Yes
|
| White Balance |
Presets: ATW, Set A, Set B
Range: 2000 to 15,000K
|
| Lens |
|---|
| Focal Length |
8.8 to 176mm (35mm Equivalent: 24.5 to 490mm)
|
| Zoom |
20x Optical
|
| Maximum Aperture |
f/2.8 to 4.5
|
| Minimum Focus Distance |
Not Specified by Manufacturer
|
| Filter Size |
67 mm
|
| Control Rings |
Focus
Zoom
Iris
|
| Focus |
|---|
| Focus Mode |
Automatic, Manual Focus
|
| Video Capture |
|---|
| Internal Recording |
H.264/MOV 4:2:2 10-Bit
3840 x 2160 from 1 to 30.00 fps (150 to 200 Mb/s VBR)
1920 x 1080p from 1 to 60.00 fps (50 to 200 Mb/s VBR)
1920 x 1080p at 120 fps (100 to 400 Mb/s)
1920 x 1080i at 50/59.94 fps
*Sensor Crops During Recording
H.265 Long GOP/MOV 4:2:0 10-Bit
3840 x 2160 from 1 to 60.00 fps (100 to 200 Mb/s VBR)
|
| Video Output |
4:2:2 10-Bit via HDMI
3840 x 2160 at 23.98/25/29.97/50/59.94 fps
1920 x 1080p at 23.98/25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:2:2 10-Bit via SDI/BNC
1920 x 1080p at 50/59.94 fps
1920 x 1080i at 50/59.94 fps
1920 x 1080PsF at 23.98/25/29.97 fps
1280 x 720 at 50/59.94 fps
|
| Broadcast Output |
NTSC with 2000 TV Lines
|
| Fast-/Slow-Motion Support |
Yes
|
| Interval Recording Modes |
No
|
| Gamma Curve |
HDR-HLG, Panasonic V-Log
|
| Built-In Microphone |
Stereo
|
| Audio Recording |
MOV: 4-Channel, 24-Bit at 48 kHz via LPCM Audio
AVCHD: 2-Channel, 16-Bit at 48 kHz
MXF: 4-Channel, 24-Bit at 48 kHz via AAC LC Audio
MXF: 4-Channel, 16-Bit at 48 kHz
|
| IP Streaming |
H.264, RTMP, RTMPS, RTP, RTSP, SRT
3840 x 2160 at 24p, 25p, 30p, 50p, 60p (0.5 to 75.00 Mb/s)
|
| Interface |
|---|
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
|
| Internal Storage |
No
|
| Video I/O |
1x BNC (12G-SDI) Output
1x HDMI 2.0 Output
1x 1/8" / 3.5 mm TRRS A/V (Composite) Output
1x RJ45 (NDI) Output
|
| Audio I/O |
1x 1/8" / 3.5 mm TRS Stereo Line Input on Camera Body
1x XLR 3-Pin Mic/Line Input on Included Handle (+48 V Phantom Power)
1x XLR 3-Pin Mic/Line Input on Camera Body (+48 V Phantom Power)
|
| Power I/O |
1x Barrel (12VDC) Input
|
| Other I/O |
1x BNC (Timecode) Input/Output
1x BNC (Genlock) Input
1x 2.5 mm Sub-Mini (Remote)
1x RJ45 (Ethernet, LAN) (Shared with Video Output)
1x USB-C (USB 3.2 / 3.1 Gen 1)
1x USB-A (USB 2.0) Host
|
| Wireless |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: CX ROP
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
| Monitor |
|---|
| Display Type |
Primary Monitor: Articulating 3.2" Touchscreen LCD
|
| Resolution |
No
|
| Viewfinder |
|---|
| Type |
Electronic (OLED)
|
| Resolution |
1,770,000 Dot
|
| Power |
|---|
| Battery |
Panasonic AG-VBR Series
|
| Power Consumption |
≤26 W
|
| Environmental |
|---|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 10 to 80% Humidity
|
| General |
|---|
| Shoe Mount |
2x Cold Shoe
|
| Accessory Mounting Thread |
No
|
| Built-In Video Light |
No
|
| Dimensions (W x H x D) |
7.1 x 6.8 x 12.2" / 180 x 173 x 311 mm (Without Protrusions)
|
| Weight |
4.2 lb / 1.9 kg (Body Only)
|
