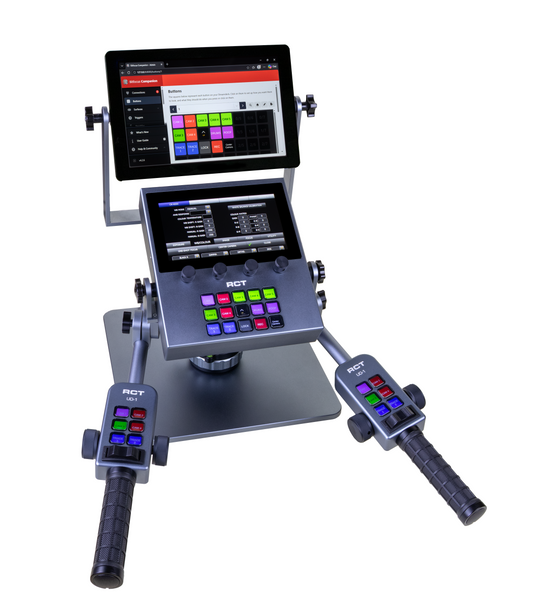

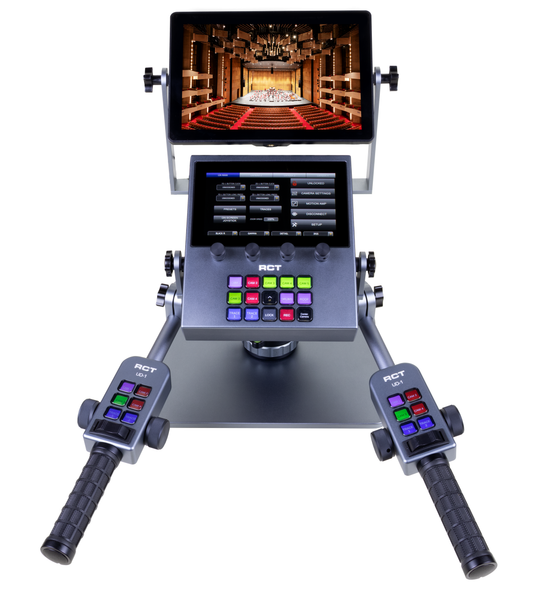

Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System
Product Highlights:
- Ultra-low latency IP control
- Joystick-free camera operation
- Windows 11 control system
- Integrated Stream Deck workflow
- PTZ camera compatibility
- Motion capture playback support
- Custom MotionAmp™ sensitivity control
- Smooth, precise camera response
- Encoder-free open system
- Mounts to any fluid head
- Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System
Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System
Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System

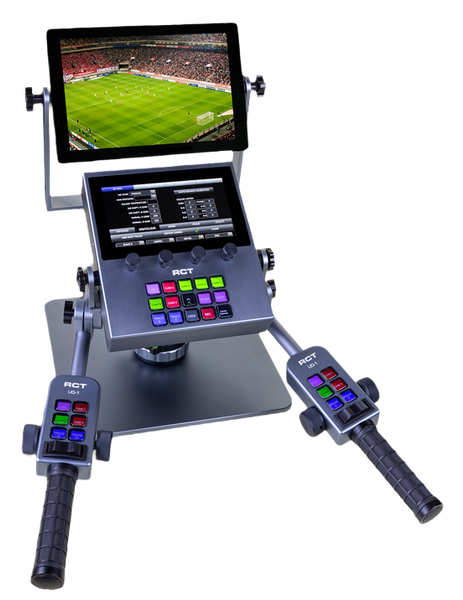

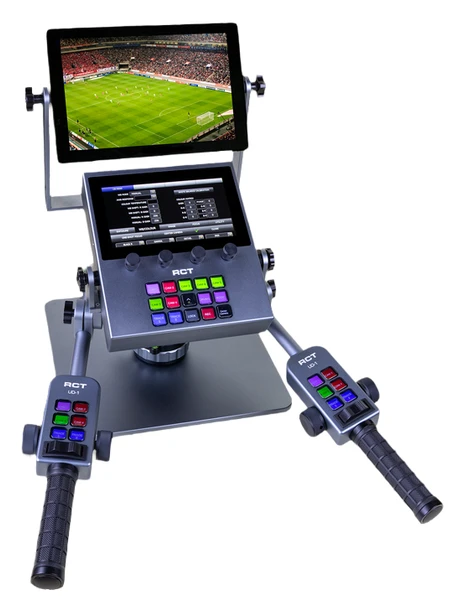

The FR-4 Fluid Remote™ is a revolutionary pan bar system that is ideal for many applications including remote productions. It is the next generation of our popular FR-1 and FR-2 models.
It allows the camera operator to follow live action much easier than with a joystick and it was designed specifically for ultra-low latency control over IP, critical for live events. There is no “joy” with using joysticks.
The FR-4 uses a compact PC running Microsoft Windows 11 and includes three Elgato Stream Deck modules. Bitfocus Companion is pre-installed allowing users to customize the system to optimize their workflow.
The FR-4 Fluid Remote™ is compatible with the top PTZ cameras from Sony, Canon, and Panasonic. See models in the specification below.
It can also be used for motion capture of pan/tilt/zoom/focus for accurate playback.
The unique MotionAmp™ feature for both pan and tilt allows the operator to amplify or attenuate the angular relationship between the FR-2 and PTZ camera. For example, if the pan is set to 2X, rotating the FR-4 90 degrees causes the PTZ camera to rotate 180 degrees
.
The response is smooth and precise, and the FR-4 can be mounted on any fluid head because it does not rely on encoders for motion capture therefore making it a truly open system.
| RCT FR-4 Specs |
|---|
| Operating system |
Microsoft Windows 11 |
| Installed Software |
Bitfocus Companion |
| Supported equipment |
Panasonic AW-UE160, AW-UE150A, AW-UE100, AW-UR100, AW-UE80
Sony ILME-FR7, BRC-AM7
Canon CR-N700, CR-N500, CR-N300, CR-X300
Movicom Robyhead D1 and D2 |
| CPU |
Intel J1900CPU, Quad core, 2GHz |
| Storage and Memory |
128GB SSD, RAM 4GB DDR3 |
| Network card |
Integrated gigabit network card |
| WIFI |
2.4Ghz (5Ghz option) |
| Display |
7 inch, 1024 x600, 10 point capacitive touchscreen |
| Input/Output |
1xVGA, 1xHDMI, 1xLAN, 2xUSB2.0, 2xUSB3.0, 1xAudio Output, 1xDC12V, 1xWIFI |
| Operating temperature |
-10°C-60°C |
| Storage temperature |
-20°C-70°C |
| Operating humidity |
5-85% (Non condensing) |
| Enclosure |
Machined aluminum with anodized finish |
| Power supply |
DC12V/5A |
| Power consumption |
<60W |
| Accessories |
Tabletop base (10” Field Display and Fluid Head are not included) |
