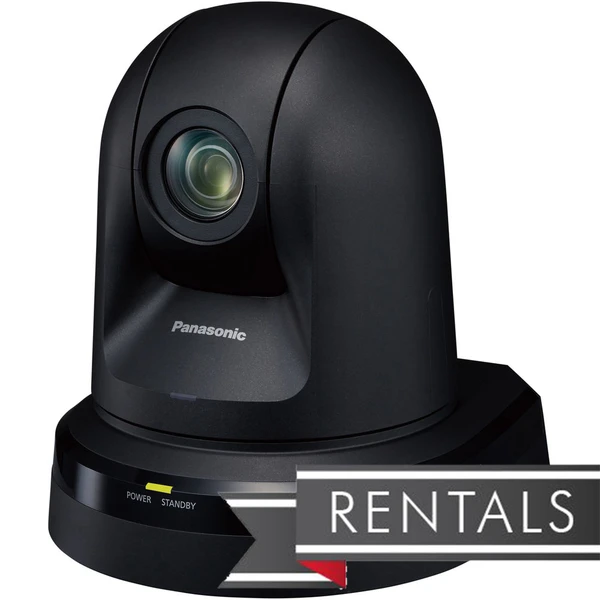

Panasonic AW-HE42K remote pan/tilt camera

• (1) Panasonic AW-HE42K remote pan/tilt camera
• (1) AC adapter w/ power cable

• (1) Panasonic AW-HE42K remote pan/tilt camera
• (1) AC adapter w/ power cable

The black Panasonic AW-HE42 3G-SDI/HDMI/IP PTZ Camera with 20x Optical Zoom delivers high-quality Full HD video for conference rooms, houses of worship, educational facilities, and other professional applications. Featuring a 1/2.3" MOS sensor, the camera supports video output up to 1080p59.94 through HDMI, 3G-SDI, USB, and IP connections. Additional capabilities include LAN streaming, mic/line audio input, microSD card recording, and remote camera control.

With its 20x optical zoom, 30x digital zoom, and versatile connectivity options, the AW-HE42 provides flexible camera operation for a variety of production environments. Its IP-based functionality allows users to monitor video and control pan, tilt, and zoom movements remotely through a web browser, helping simplify installations and multi-location production workflows.

20x Optical Zoom and Full HD Imaging

• 1/2.3" MOS sensor captures high-quality Full HD video.
• 20x optical zoom with additional 30x digital zoom capability.
• 4.1 to 81.6mm zoom lens with a 35mm equivalent range of 29.5 to 612mm.
• Supports video output resolutions up to 1080p59.94.
• Automatic white balance helps maintain accurate color reproduction.

Versatile Video Outputs and Connectivity

• Supports HDMI, 3G-SDI, USB, and IP video output for flexible production workflows.
• RJ45 LAN connection enables IP streaming and remote operation.
• External synchronization input supports Black Burst Sync (BBS) and tri-level sync signals.
• Supports AVC/H.264 video compression and RTSP/RTMP streaming.
• Optional NDI|HX upgrade enables real-time IP video transmission and simultaneous NDI|HX output.

Remote PTZ Control

• Control pan, tilt, and zoom functions remotely through a web browser using a computer, smartphone, or tablet.
• Supports RS-232 and RS-422 serial control.
• Offers a 175° panning range and -30 to 90° tilt range.
• IP-based control simplifies remote production and multi-camera installations.
• Optional Auto-Tracking software uses facial recognition and body detection to automatically follow subjects.

High Dynamic Range and Image Enhancement

• High Dynamic Range (HDR) mode improves image capture in challenging lighting conditions, including backlit environments.
• Dynamic Range Stretch (DRS) helps preserve details in dark shadows and bright highlights.
• Digital Noise Reduction (DNR) minimizes unwanted image noise.
• Optical and digital 4-axis automatic image stabilization helps reduce vibrations caused by nearby equipment, doors, or mounting surfaces.
• Built-in four-stage ND filter system provides additional exposure control.

Night Mode

The AW-HE42 features a Night Mode that allows users to capture monochrome images in low-light environments. This function can be activated manually or automatically, making the camera suitable for applications where available lighting is limited, including wildlife observation.

Freeze During Preset

The Freeze During Preset function allows the camera to display a still image while moving between preset positions. By holding the previous frame during movement, the camera prevents visible panning and tilting transitions from appearing in the video output, providing smoother single-camera production workflows.

Audio Input and Recording

• Supports microphone and line-level audio inputs.
• Audio can be embedded into the video signal for synchronized transmission.
• Supports AAC-LC audio compression and audio output over IP.
• Records video and audio in MP4 format to a separately available microSD card.

PoE+ Power Support

Power-over-Ethernet Plus (PoE+) compatibility allows the camera to receive power through a single LAN cable, reducing the need for additional power connections. This streamlined installation approach helps minimize cabling requirements and associated installation costs.

Optional NDI|HX Support

The AW-HE42 can be upgraded to support NDI|HX video output through an optional license purchased from Panasonic. This upgrade enables the camera to encode and transmit high-quality video over an IP network in real time, providing additional flexibility for broadcast and live production applications.
