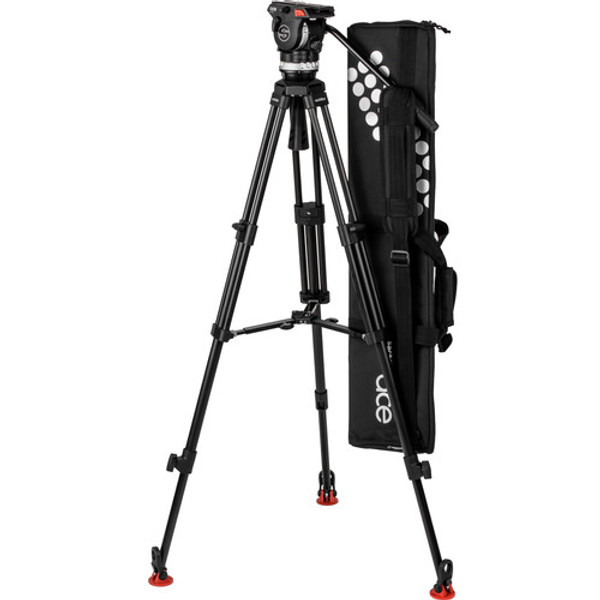

Sachtler 018A System Ace XL MS AL with Fluid Head, Ace 75/2 D Tripod, Mid-Level Spreader & Bag
Product Highlights:
- Supports up to 17.6 lb
- Drag: 3 Grades Each of H/V + Zero
- 8-Step Counterbalance
- Balance Plate with 4.1" Sliding Range
- 66.9" Maximum System Height
- Mid-Level Spreader Included
- Rubber Feet and Ace Tripod Bag Included
- Sachtler System Ace XL MS AL with Fluid Head, Ace 75/2 D Tripod, Mid-Level Spreader & Bag
- Ace XL Fluid Head (75mm Bowl)
- Ace 75/2 D Tripod Legs
- Mid-Level Spreader
- 3 x Removable Rubber Feet
- Padded Bag (9115)
- Limited 1-Year Warranty, Extendable to 2-Years with Product Registration
Sachtler 018A System Ace XL MS AL with Fluid Head, Ace 75/2 D Tripod, Mid-Level Spreader & Bag
Sachtler 1018A System Ace XL MS AL with Fluid Head, Ace 75/2 D Tripod, Mid-Level Spreader & Bag
The Sachtler System Ace XL MS AL with Fluid Head, Ace 75/2 D Tripod, Mid-Level Spreader & Bag is a full tripod system for videographers who use cameras and accessories up to 17.6 pounds. The Ace XL fluid head is suitable for larger DSLR and mirrorless MFT cameras, as well as pro-style cameras such as the Blackmagic URSA Mini/Pro, Canon C200/C300 Mk II, Sony FS series, and the Panasonic EVA1. The Ace XL fluid head features eight steps of counterbalance and three steps of pan and tilt drag adjustment, plus a zero drag option for pan and tilt.
The Ace 75/2 D aluminum legs can support up to 77 pounds, which easily handles the weight of the head, your camera, and accessories. Each leg is individually adjustable, providing a stable platform, even when working on uneven terrain. The included mid-level spreader is also well suited to working on uneven terrain. Included rubber feet slip onto the dual-spiked feet for working on hard or delicate surfaces.
| General |
|---|
| Load Capacity |
4.4 to 17.6 lb / 2 to 8 kg |
| Height Range |
31.1 to 66.9" / 79 to 170 cm |
| Folded Length |
33.9" / 86 cm |
| Leveling Bubble/Illuminated |
Yes/no |
| Weight |
9.9 lb / 4.5 kg |
| Head |
|---|
| Counterbalance System |
8 steps |
| Quick Release/Wedge Plate |
Yes |
| Balance Plate |
4.1" / 10.4 cm range of adjustment |
| Pan Drag |
3 steps plus zero |
| Tilt Drag |
3 steps plus zero |
| Tilt Range |
+90 / -75° |
| Operating Temperature |
-22 to 140°F / -30 to 60°C |
| Legs |
|---|
| Material |
Aluminum |
| Head Attachment Fitting |
75 mm bowl |
| Leg Stages |
4 |
| Leg Lock Type |
Lever |
| Independent Leg Spread |
Yes, without spreader attached |
| Spiked/Retractable Feet |
Yes/no |
