Yamaha DM5 Professional 60-Channel 26-Fader Dual Bay Digital Audio Console with 96kHz Audio
Product Highlights:
- 60-Channel Dual-Bay Digital Mixing Console
- 96kHz Audio
- 64x64 Dante I/O at 96kHz
- Dual 13" Touchscreens with 26 Faders
- Yamaha DM5 Professional 60-Channel 26-Fader Dual Bay Digital Audio Console with 96kHz
- Audio Owner's Manual
- AC Power Cord
- Dust Cover
- Cable Hook
- Steinberg Nuendo Live
- VST Rack Elements
Yamaha DM5 Professional 60-Channel 26-Fader Dual Bay Digital Audio Console with 96kHz Audio
Yamaha DM5 Professional 60-Channel 26-Fader Dual Bay Digital Audio Console with 96kHz Audio
Built on the proven DM7 architecture, the DM5 series is available in two models, DM5 and DM5C, and provides seamless console file compatibility across DM7 and DM5 consoles while maintaining a consistent workflow. Both models deliver the trusted Yamaha sound and stability professionals rely on across live, installation, and touring environments.
Professional 60-Channel Digital Console
The DM5 is a professional 60-channel, dual-bay digital console designed for live sound, corporate events, broadcast, and theater production. Built on the DM7 engine, it delivers 96kHz audio, flagship processing, advanced effects, and compatibility with the DM Series Editor for seamless show file sharing.

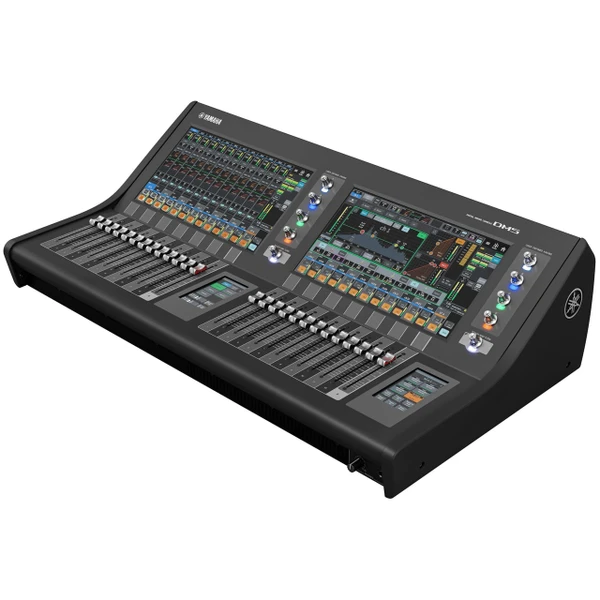

The console features 26 faders (12+1+12+1), 32 analog inputs, 24 outputs, dual 13" touchscreens, and a 4" utility display.
Road-Ready Design

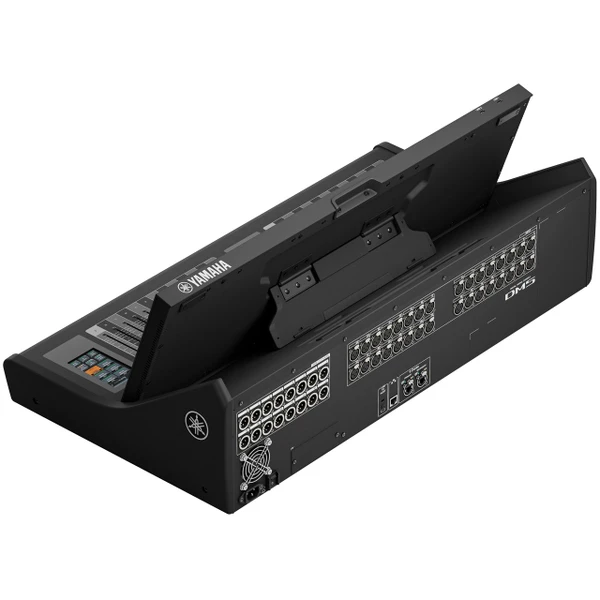

Weighing 47 lb, the DM5 is durable, road-ready, and equipped with an adjustable tilt display offering four viewing angles to minimize glare in outdoor mixing environments. It provides intuitive control and an efficient workflow for audio professionals.
Scalable Professional Workflow
With Rivage-inspired control in a portable format, the DM5 Series makes it easier than ever to scale professional systems without compromise.
PY-Series Expansion Card Compatibility
Please Note: The new Yamaha DM5 and DM5 Compact use the same PY-series expansion card ecosystem as the DM7 series. Both DM5 models include a PY card slot, and Yamaha specifically lists the following PY cards as supported:
- PY64-D (64-channel Dante I/O)
- PY64-MD (64-channel MADI I/O)
- PY8-AE (8-channel AES/EBU I/O)
- PY-MIDI-GPI (MIDI/GPI interface)
- PY-DSP (Signal processing card)
- WSG-PY64 (Waves SoundGrid interface)
Dante Connectivity
The Yamaha DM5 Series is Dante-enabled, providing 64x64 Dante I/O at 96kHz. It is designed to work within Yamaha's Dante ecosystem, including the Rio Series I/O racks.
| Yamaha DM5 Tech Specs |
|---|
| Mixing Capacity |
60x Inputs
|
| Mix Buses |
24x
|
| Matrices |
12x
|
| Stereo Buses |
2x
|
| Cue Buses |
1x
|
| Analog Input |
32x
|
| Analog Output |
16x
|
| Sampling Frequency: |
- External Clock/Frequency Range: 48kHz/96kHz ±200 ppm
- Internal Clock/Frequency: 48kHz/96kHz |
| Signal Delay |
Less than 1.5 ms, INPUT to OMNI OUT @Fs=96kHz
|
| Screens: |
- 2x 13.3" multi-touch screen with Glass key
- 2x 4.3" multi-touch screen with Glass key
- Touch sensitive knobs in the Selected Channel section |
| Fader |
26x 100mm touch-sensitive motorized fader (resolution=1024 steps)
|
| Power Requirements |
100V - 240V, 50/60Hz
|
| Power Consumption |
130W
|
| Dimensions (WxHxD) |
32.5" x 9.30" x 17.30" (including rubber feet)
|
| Weight |
47.5lbs
|
| NC Value: |
- Fan Speed LOW: NC=20
- Fan Speed HIGH: NC=25 |
| Operating Temperature Range |
32°F - 104°F
|
| Storage Temperature Range |
-4°F - 140°F
|
