Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
Product Highlights:
- Super 35/Full Frame | T5.0-10.8 Aperture
- Built-In 1.5x Extender for Full-Frame
- 0.8 MOD Focus/Iris/Zoom Gears
- Cooke /i Technology, ZEISS eXtended Data
- 136mm Front Outside Diameter
- LCD for User Functions and Settings
- 11-Blade Iris, 16-Bit Metadata Output
- 30x Zoom, 180° Focus Ring Rotation
- Breathing Compensation, USB Power Drive
- Durable Design, Lightweight at 6.7 lb
- Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)
- Servo Drive
- Lens Cap
- Dust Cap
- Lens Hood
- Hood Cap
- Lens Support (19mm Rod Bracket)
- 3 x Servo Drive Mounting Screw
- Servo Storage Pouch
- Limited 1-Year Manufacturer Warranty
Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (ARRI PL)

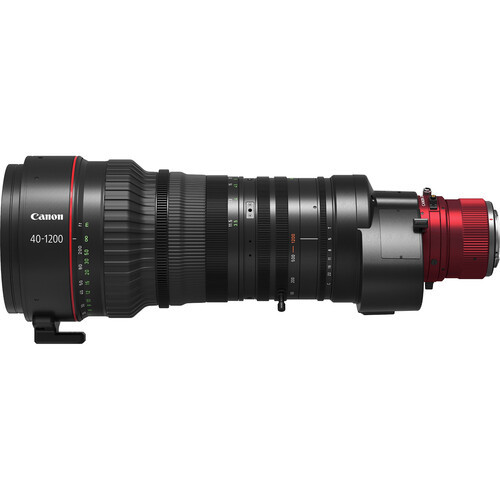

Canon 7670C001 CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens (Canon RF)
Capture distant subjects with exceptional reach using the Canon CINE-SERVO 40-1200mm T5.0-10.8 Cinema Zoom Lens, offering one of the longest focal lengths available for ENG and cinematic applications. This RF-mount broadcast lens is designed for native Super 35 coverage and can extend to full-frame compatibility באמצעות its integrated 1.5x extender. Its compact and relatively lightweight build makes it adaptable for a wide range of production setups, including tripod, vehicle-mounted, and aerial shooting.
40 to 1200mm Focal Length
The lens provides a broad 40–1200mm zoom range with a variable aperture from T5.0 to T10.8 across the focal spectrum. Activating the built-in 1.5x extender increases the 30x optical zoom, expanding the range to an impressive 60–1800mm.
In line with Canon’s cinema lens design, it delivers smooth, cinematic bokeh through an 11-blade iris, along with a stepless iris ring for seamless exposure control.

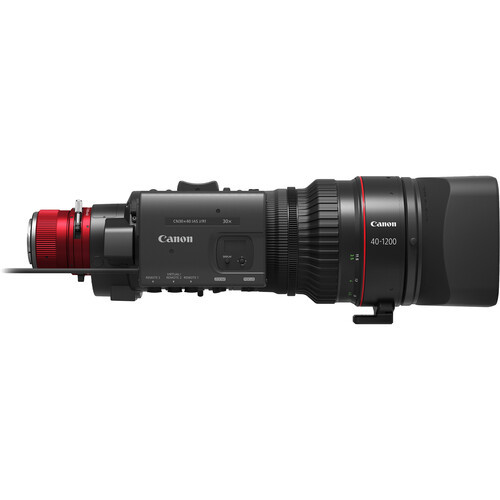

Advanced Servo Drive Unit
The built-in servo drive system features Focus Breathing Compensation, helping maintain consistent framing during focus adjustments.
It supports ARIA and ALAC communication protocols via a 12-pin connector, and when paired with the EOS C400, it enables Auto-Exposure Ramping Compensation.
This RF-mount version also incorporates Dual Pixel CMOS AF II and Focus Guide functionality, allowing autofocus support and metadata communication with compatible cameras. The servo unit can be detached for traditional cine-style operation or integrated into studio workflows with 16-bit metadata output.
| Canon Cine-Servo 40-1200mm T5.0 Specs |
|---|
| Focal Length |
40 to 1200mm
|
| Maximum Aperture |
T5
|
| Minimum Aperture |
T10.8
|
| Lens Mount |
Canon RF with Included Adapter |
| Lens Format Coverage |
Super35/APS-C (29.6 mm Image Circle)
Full-Frame (43.3 mm Image Circle)
|
| Angle of View |
Super 35
34.2 to 19.6°
Full Frame
23.2 to 13.1°
|
| Focus Scales |
Metric, Imperial
|
| Filter Thread |
No
|
| Zoom Ratio |
30x
|
| Minimum Focus Distance |
4' / 1.2 m
|
| Aperture/Iris Blades |
11
|
| Image Stabilization |
No
|
| Lens Mounting |
No
|
| Gear Standard |
Focus, Iris, Zoom: 0.8 MOD
|
| Electronic Communication |
Yes
|
| Camera Connection |
12-Pin (Canon Lens) Control, Data, Power
|
| Diameter |
Front: 5.4" / 136 mm
Lens Hood: 5" / 127 mm
Overall W x H: 6.9 x 6.7" / 175.3 x 170.2 mm
|
| Length |
15.95" / 40.52 cm
|
| Weight |
6.7 lb / 3.04 kg
|
