Vizrt TriCaster Mini X HDMI
Product Highlights:
- Simultaneously Broadcast, Stream, Record
- Switch between 4 HDMI or 8 NDI Sources
- 4 x Mini DisplayPort Output
- Up to 4K Resolution Video
- Built-In Full-Featured Control Software
- 1.5 Frame Processing Latency
- Five USB 3.2 Type-A Ports
- Keyboard & Mouse Included
- Vizrt TriCaster Mini X HDMI
- Keyboard
- Mouse
- 4 x Mini DisplayPort to HDMI Adapter
- Power Cable
- Limited 1-Year Manufacturer Warranty

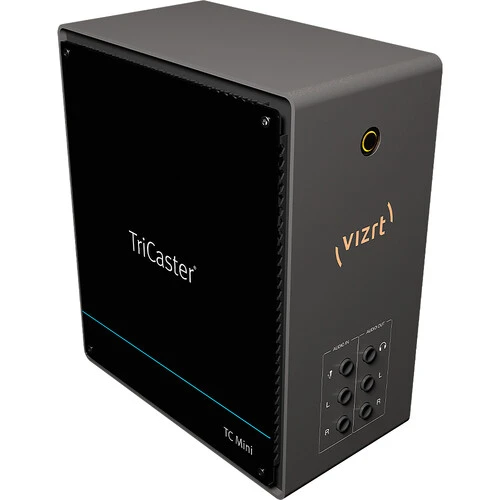

Vizrt TriCaster Mini X HDMI
Vizrt FG-003265-R001 TriCaster Mini X HDMI

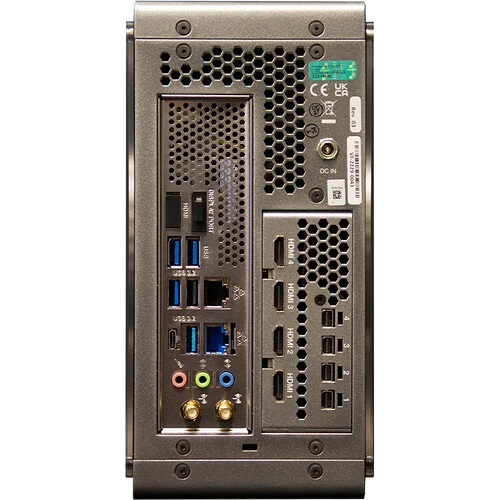

The Vizrt TriCaster Mini X HDMI is a versatile live production system with HDMI, NDI, mini DisplayPort, and USB connectivity, supporting video switching and media playback at resolutions up to 4K. Add graphics, record content, livestream, and handle network-based production tasks simultaneously. Four HDMI inputs accommodate a variety of audiovisual equipment, while four mini DisplayPort outputs include HDMI adapters for broader compatibility. Built-in software provides chroma keying, switching, streaming, and advanced audio and video controls to suit your production needs.

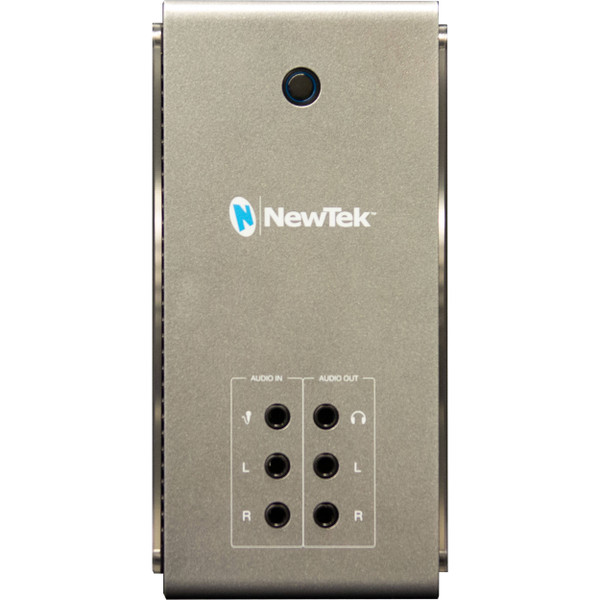

Connect HDMI devices directly to the Mini X without additional configuration, making it easy to integrate into an existing production setup. Dedicated audio connections accommodate line and microphone inputs, along with line and headphone outputs for audio monitoring. Five USB 3.2 Type-A ports support the included keyboard and mouse, as well as other compatible peripherals. Processing latency of just 1.5 frames helps keep production delays to a minimum.
Features at a Glance
- HD switching with streaming and recording at resolutions up to 4K30
- Real-time publishing to social media
- Four HDMI video connections and eight NDI IP video inputs
- NDI IP video output and four mix outputs
- Multichannel recording, audio mixing, and internal storage
- Support for major streaming platforms
- Video playback without additional hardware
- Built-in live titles and motion graphics
Live Link
Render web pages directly within TriCaster and incorporate web-based content into your production without third-party applications. Bring in graphics, images, and videos, including content from internal training platforms.
Supported Devices and Programs
- Software integration for two simultaneous Skype video call inputs
- Support for up to eight simultaneous PTZ cameras through serial and network protocols, with integrated controls and presets
- Four mix/effect buses with video re-entry support
- Five media players and 15 media buffers
- Built-in LiveMatte chroma and luma keying across all source channels and mix/effect buses
- LiveSet technology with more than 30 virtual sets and box effects
- DataLink integration for automated, real-time data input
- Embedded digital audio inputs and outputs through HDMI conversion
| Vizrt MINI X Specs |
|---|
| Processing |
|---|
| Switching Type |
Software
|
| Processing Resolution |
DCI 4K
|
| Color Processing |
4:4:4YCbCr
|
| Audio Processing |
96 kHz
|
| Latency |
1 to 1.5 Frames
|
| Input |
|---|
| Video Inputs |
4x HDMI
2x RJ45
|
| Input Video Format |
HDMI
DCI 4K at 25/29.97 fps
1080p at 25/29.97/50/59.94 fps
1080i at 50/59.94 fps
720p at 25/29.97/50/59.94 fps
480p at 25/50/59.94 fps
|
| Audio Inputs |
1x 1/4" TRS Analog Female
2x 1/4" TRS Analog Female
|
| Embedded Audio Input |
HDMI: 2-Channel
|
| Output |
|---|
| Video Outputs |
4x DisplayPort Female
|
| Audio Outputs |
1x 1/4" Balanced TS Female
1x 1/4" TRS Stereo Female
|
| Embedded Audio Output |
HDMI
|
| Multiview Output |
3-Way Multiview
|
| Connectivity |
|---|
| Other I/O |
5x USB-A 3.1/3.2 Gen 2 Input
1x USB-C 3.1/3.2 Gen 2 Input
|
| Hardware |
|---|
| Wireless |
Wi-Fi
|
| Power |
|---|
| Power I/O |
1x Barrel Input
|
| General |
|---|
| Dimensions |
9.08 x 7.89 x 4.23" / 23.06 x 20.04 x 10.74 cm
|
| Weight |
8.4 lb / 3.8 kg
|
| Packaging Info |
|---|
| Package Weight |
19 lb
|
| Box Dimensions (LxWxH) |
21.8 x 16.6 x 13.3"
|
