Vizrt TriCaster Prizm UHD 4K NDI Live Production System with LivePanel Pro (2 RU)
Product Highlights:
- 16 Simultaneous NDI Video Inputs
- Up to UHD 4K Video
- 28 NDI Video Outputs in HD Workflows
- Integrated Audio Mixer
- 4TB Internal Storage
- LivePanel Pro Included

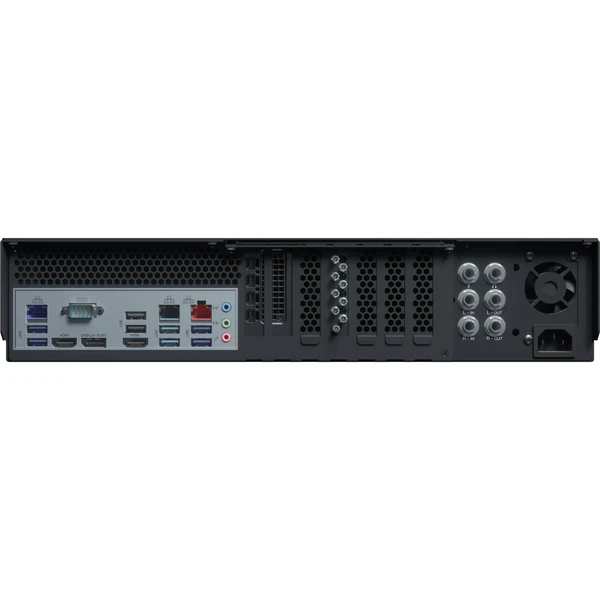

Vizrt TriCaster Prizm (2 RU)
Vizrt TriCaster Prizm (2 RU)
Scalable Live Production System
The Vizrt TriCaster Prizm is a streamlined live-production system designed for professional broadcast and streaming workflows. It supports 16 simultaneous external NDI video inputs with source resolutions up to UHD 4K and combines video switching, graphics, keying, and mix/effects tools in a 2 RU rackmount chassis.
NDI Video Connectivity
The Prizm provides a network of IP-based NDI connections for bringing video sources into a production and routing finished outputs. Up to 28 NDI video outputs are available in HD workflows, while HDMI, DisplayPort, and Mini DisplayPort connections provide additional video and monitoring options.
Integrated Audio and Recording
A built-in 16-channel audio mixer supports embedded and analog audio sources, including stereo and microphone inputs. The system also includes 4TB of internal storage for recording productions and storing graphics, video clips, and other customized media assets.
Custom Control with LivePanel Pro
Included LivePanel Pro software allows operators to build a browser-based control interface suited to their production requirements. Customized dashboards can be protected with role-based access control so that editing privileges are available only to designated team members.
| Vizrt TriCaster Prizm Specs |
|---|
| Available M/E Layers |
4 M/E |
| Effect Types |
DVE, Graphic, Chroma Key, and Luma Key |
| Audio Mixing |
16-Channel Mixing |
| Switching Type |
Software |
| Processing Resolution |
UHD 4K at 59.94 |
| Color Processing |
4:2:2 YCbCr |
| Audio Processing |
96 kHz |
| Number of Video Input Sources |
16 |
| Input Video Format |
Wireless
UHD 4K at 59.94 fps |
| Audio Inputs |
1x 1/4" TRS Stereo
1x 1/4" TRS Mic |
| Embedded Audio Input |
Wireless |
| Video Output Channels |
28 |
| Video Outputs |
2x HDMI
1x DisplayPort |
| Output Video Format |
Wireless
UHD 4K up to 59.94 fps
1080p up to 60 fps |
| Audio Outputs |
1x 1/4" TRS Stereo
1x 1/4" TRS |
| Output Audio Format |
AES/EBU |
| Embedded Audio Output |
Wireless |
| Multiview Output |
4-Way Multiview |
| Monitor Outputs |
4x Mini DisplayPort |
| Network I/O |
3x RJ-45 (NDI) |
| Other I/O |
2x USB-A 2.0
5x USB-A 3.1/3.2 Gen 2
1x DE-9/DB-9 |
| Transport Protocols |
NDI, RTMP, RTSP, and SRT |
| Internal Storage |
4TB |
| Wireless Connectivity |
Wi-Fi |
| Power I/O |
1x USB-C (5 VDC at 3 A) Input/Output
1x IEC C13 Input |
| Power Consumption |
500 W Power Supply |
| Rack Form Factor |
2 RU |
| Dimensions (W × H × D) |
19 × 3.5 × 19.57" / 48.3 × 8.9 × 49.71cm |
| Weight |
32 lb / 14.5kg |
What's Included:
- Vizrt TriCaster Prizm (2 RU)
- LivePanel Pro
- Limited 1-Year Manufacturer Warranty
