Vizrt TriCaster Vizion UHD 4K Live Production System with 16 Configurable SDI I/O Ports (2 RU)
Product Highlights:
- Video Mixing Tool
- 44 Simultaneous NDI Video Inputs
- 16 Configurable 12G-SDI I/O Ports
- Up to UHD 4K Video
- 56 NDI Outputs in HD Workflows
- Balanced Stereo Audio I/O
- Integrated Audio Mixer
- 4TB Internal SSD
- LivePanel Pro, Flowics Basic

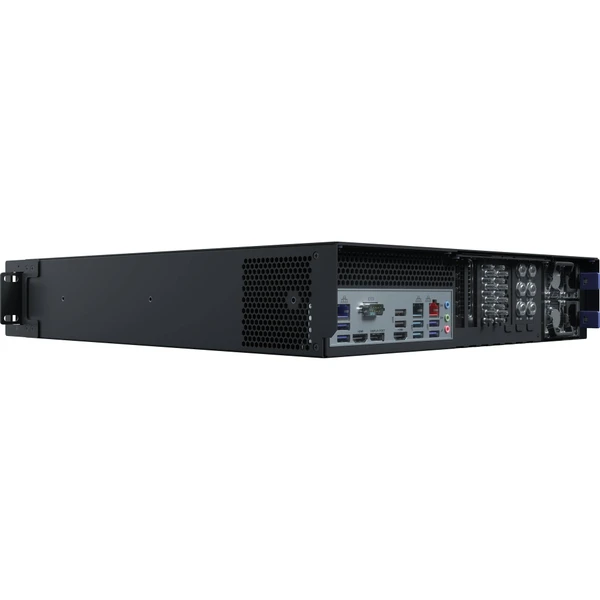

Vizrt TriCaster Vizion with 16 SDI I/O (2 RU)
Vizrt TriCaster Vizion with 16 SDI I/O (2 RU)
Professional UHD 4K Live Production
The Vizrt TriCaster Vizion is a professional video mixing and live-production system designed for broadcast, live sports, and live event workflows. It supports 44 simultaneous external NDI video inputs with mixed source resolutions up to UHD 4K, providing the capacity needed for complex productions and routing configurations.
Configurable SDI and NDI Connectivity
Sixteen BNC ports can be configured for 12G-SDI, 3G-SDI, and HD-SDI input or output according to production requirements. Network-based workflows can access up to 56 NDI outputs at HD resolutions, while HDMI, DisplayPort, Mini DisplayPort, analog audio, USB, and network connections support monitoring and system integration.
Integrated Production and Audio Tools
The Vizion provides eight M/E layers along with graphic, chroma-key, and luma-key effects. Its integrated 44-channel audio mixer and stereo audio connections support comprehensive audio management, while the internal 4TB SSD provides space for recording productions and storing customized media assets.
LivePanel Pro and Flowics Graphics
Included LivePanel Pro software supports customized second-screen production workflows. The system also includes three years of Viz Flowics Basic, providing a graphics editor, a 5GB asset library, and data integrations for creating live graphics. One year of standard support is included with the system.
| Vizrt TriCaster Vizion with 16 SDI I/O Specs |
|---|
| Available M/E Layers |
8 M/E |
| Effect Types |
Graphic, Chroma Key, and Luma Key |
| Audio Mixing |
44-Channel Mixing |
| Switching Type |
Software |
| Processing Resolution |
UHD 4K at 25/29.97/50/59.94 |
| Color Processing |
4:2:2 YCbCr |
| Audio Processing |
96 kHz |
| Number of Video Input Sources |
44 |
| Input Video Formats |
SDI / Wireless
UHD 4K at 25/29.97/50/59.94 fps
1080p at 25/29.97/30/50/59.94/60 fps
1080i at 59.94/60 fps
720p at 25/29.97/59.94 fps |
| Audio Inputs |
1x 1/4" TRS Stereo
1x 1/4" TRS Mic |
| Video Output Channels |
56 |
| Video Outputs |
2x HDMI
1x DisplayPort |
| Output Video Format |
Wireless
1080p |
| Audio Outputs |
1x 1/4" TRS Stereo
1x 1/4" TRS |
| Multiview Output |
4-Way Multiview |
| Monitor Outputs |
4x Mini DisplayPort |
| SDI and Network I/O |
3x RJ-45 (NDI)
16x BNC (12G-SDI, 3G-SDI, HD-SDI) |
| Other I/O |
7x USB-A 3.0 / 3.1/3.2 Gen 1
1x USB-A 2.0
1x USB-C 3.0 / 3.1/3.2 Gen 1
1x DE-9/DB-9 |
| Transport Protocols |
NDI |
| Compatible Services |
Livestream and Zoom |
| Recording Media |
1x 2.5" 4TB SSD |
| Wireless Connectivity |
Wi-Fi |
| Power I/O |
2x IEC C13 Input |
| Power Consumption |
550 W Power Supply |
| Operating Conditions |
41 to 81°F / 5 to 27°C at 8 to 85% Humidity |
| Storage Conditions |
-40 to 140°F / -40 to 60°C at 8 to 90% Humidity |
| Rack Form Factor |
2 RU |
| Dimensions (W × H × D) |
19 × 3.5 × 19.57" / 48.3 × 8.9 × 49.71cm |
| Weight |
32 lb / 14.5kg |
What's Included:
- Vizrt TriCaster Vizion with 16 SDI I/O (2 RU)
- Viz Flowics Basic (3 Years)
- Standard Support (1 Year)
- LivePanel Pro
- Limited 1-Year Manufacturer Warranty
