Yamaha DM5C Professional 48-Channel 13-Fader Compact Single Bay Digital Audio Console with 96 kHz Audio
Product Highlights:
- 48-Channel, Single-Bay Digital Console
- 96kHz Audio
- 13 Faders (12+1)
- 16 Analog Inputs / 24 Outputs
- 13" Touchscreen + 4" Utility Display
- 64x64 Dante I/O
- 1x PY Expansion Card Slot
- 18x18 USB to Host
- Yamaha DM5C Professional 48-Channel 13-Fader Compact Single Bay Digital Audio Console with 96 kHz Audio
- Owner's Manual
- AC Power Cord
- Dust Cover
- Cable Hook
- Steinberg Nuendo Live
- VST Rack Elements
Yamaha DM5C Professional 48-Channel 13-Fader Compact Single Bay Digital Audio Console with 96 kHz Audio
Yamaha DM5C Professional 48-Channel 13-Fader Compact Single Bay Digital Audio Console with 96 kHz Audio
Built on the proven DM7 architecture, the Yamaha DM5 Series is designed to deliver flexibility, performance, and reliability across live, installation, and touring environments. Available in two models, the DM5 and DM5C, the series provides seamless console file compatibility across DM7 and DM5 consoles while maintaining a consistent workflow.
The DM5C is a professional 48-channel, single-bay digital console designed for live sound, corporate events, broadcast, and theater production. Built on the DM7 engine, it delivers 96kHz audio, flagship processing, advanced effects, and compatibility with the DM Series editor for seamless show file sharing.
Compact Professional Control
The DM5C features 13 faders (12+1), 16 analog inputs, 24 outputs, a 13" touchscreen, and a 4" utility display. Its compact design provides intuitive control and an efficient workflow for audio professionals.

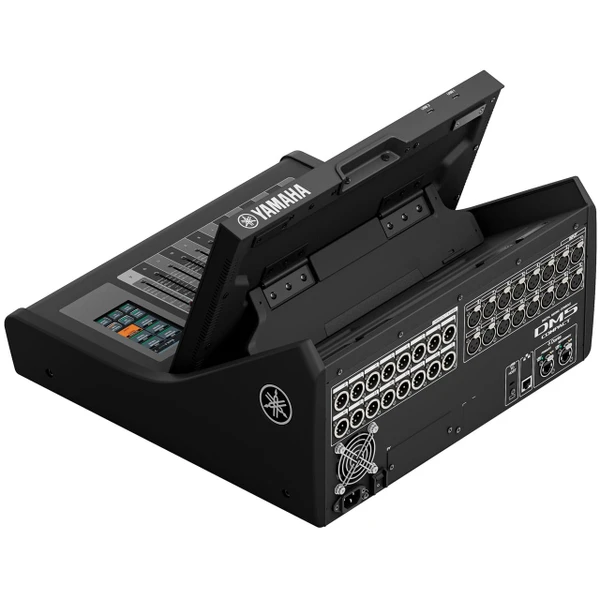

The adjustable tilt display offers four viewing angles to help minimize glare in outdoor mixing environments. With Rivage-inspired control in a portable format, the DM5 Series makes it easier to scale professional systems.
Yamaha Sound and Processing
- 96kHz sample rate
- Built from the DM7 Series engine
- 60 mixable input channels
- 24 Mix buses
- 1 Stereo bus
- 10 Matrix buses
- 12 DCAs
- 16 FX Rack
- USB to Host: 18x18
Dante Connectivity
The Yamaha DM5 Series is Dante-enabled with 64x64 Dante I/O at 96kHz and is designed to work within Yamaha's Dante ecosystem, including the Rio Series I/O racks.
PY-Series Expansion
The Yamaha DM5 and DM5 Compact use the same PY-Series expansion card ecosystem as the DM7 Series. Both DM5 models include one PY card slot.
Supported PY cards include:
- PY64-D – 64-channel Dante I/O
- PY64-MD – 64-channel MADI I/O
- PY8-AE – 8-channel AES/EBU I/O
- PY-MIDI-GPI – MIDI/GPI interface
- PY-DSP – Signal processing card
- WSG-PY64 – Waves SoundGrid interface
DM5C Features
- Professional 48-channel, single-bay digital console
- Renowned Yamaha sound with 96kHz sample rate
- 13 faders (12+1)
- 16 analog inputs
- 24 outputs
- 13" touchscreen
- 4" utility display
- 60 mixable input channels
- 64x64 Dante I/O
- 1 PY slot
- 18x18 USB to Host
- Adjustable tilt display with four viewing angles
- DM Series editor compatibility
- Console file compatibility across DM7 and DM5 consoles
| Yamaha DM5C Specs |
|---|
| Mixing Capacity |
48x mono inputs
|
| Mix Buses |
24x
|
| Matrices |
12x
|
| Cue Buses |
1x
|
| Analog Input |
16x
|
| Analog Output |
16x
|
| Sampling Frequency |
- External Clock/Frequency Range: 48kHz/96kHz ±200 ppm
- Internal Clock/Frequency: 48kHz/96kHz
|
| Signal Delay |
Less than 1.5 ms, INPUT to OMNI OUT @Fs=96kHz
|
| Screens |
- 1x 13.3" multi-touch screen with Glass key
- 1x 4.3" multi-touch screen with Glass key
- Touch sensitive knobs in the Selected Channel section
|
| Fader |
13x 100mm touch-sensitive motorized fader (resolution=1024 steps)
|
| Power Requirements |
100V - 240V, 50/60Hz
|
| Power Consumption |
130W
|
| Dimensions (WxHxD) |
17.5" x 9.30" x 17.30" (including rubber feet)
|
| Weight |
29.5lbs
|
| NC Value |
- Fan Speed LOW: NC=20
- Fan Speed HIGH: NC=25
|
| Operating Temperature Range |
32°F - 104°F
|
| Storage Temperature Range |
-4°F - 140°F
|
