Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System

Remote Camera Technology Logo

Remote Camera Technology FR-4 Fluid Remote Pan Bar Control System

A next-generation pan bar control system built for ultra-low latency IP control, live production workflows, and precise PTZ camera operation.

View Product Page
RCT FR-4 Fluid Remote Pan Bar Control System

Built for Modern Remote Production

The FR-4 Fluid Remote™ is a revolutionary pan bar system designed for remote productions, live events, and advanced PTZ camera workflows. As the next generation of Remote Camera Technology’s popular FR-1 and FR-2 models, the FR-4 gives operators a more natural way to follow live action without relying on traditional joystick control.

Designed specifically for ultra-low latency control over IP, the FR-4 allows camera operators to respond quickly and smoothly during critical live production moments. Simply put, there is no “joy” in using joysticks when precision and speed matter.

Product Highlights

Ultra-low latency IP control Joystick-free camera operation Windows 11 control system Integrated Stream Deck workflow PTZ camera compatibility Motion capture playback support Custom MotionAmp™ sensitivity control Smooth, precise camera response Encoder-free open system Mounts to any fluid head

Customizable Control Workflow

The FR-4 uses a compact PC running Microsoft Windows 11 and includes three Elgato Stream Deck modules. Bitfocus Companion comes pre-installed, giving users the flexibility to customize their system and streamline production workflows.

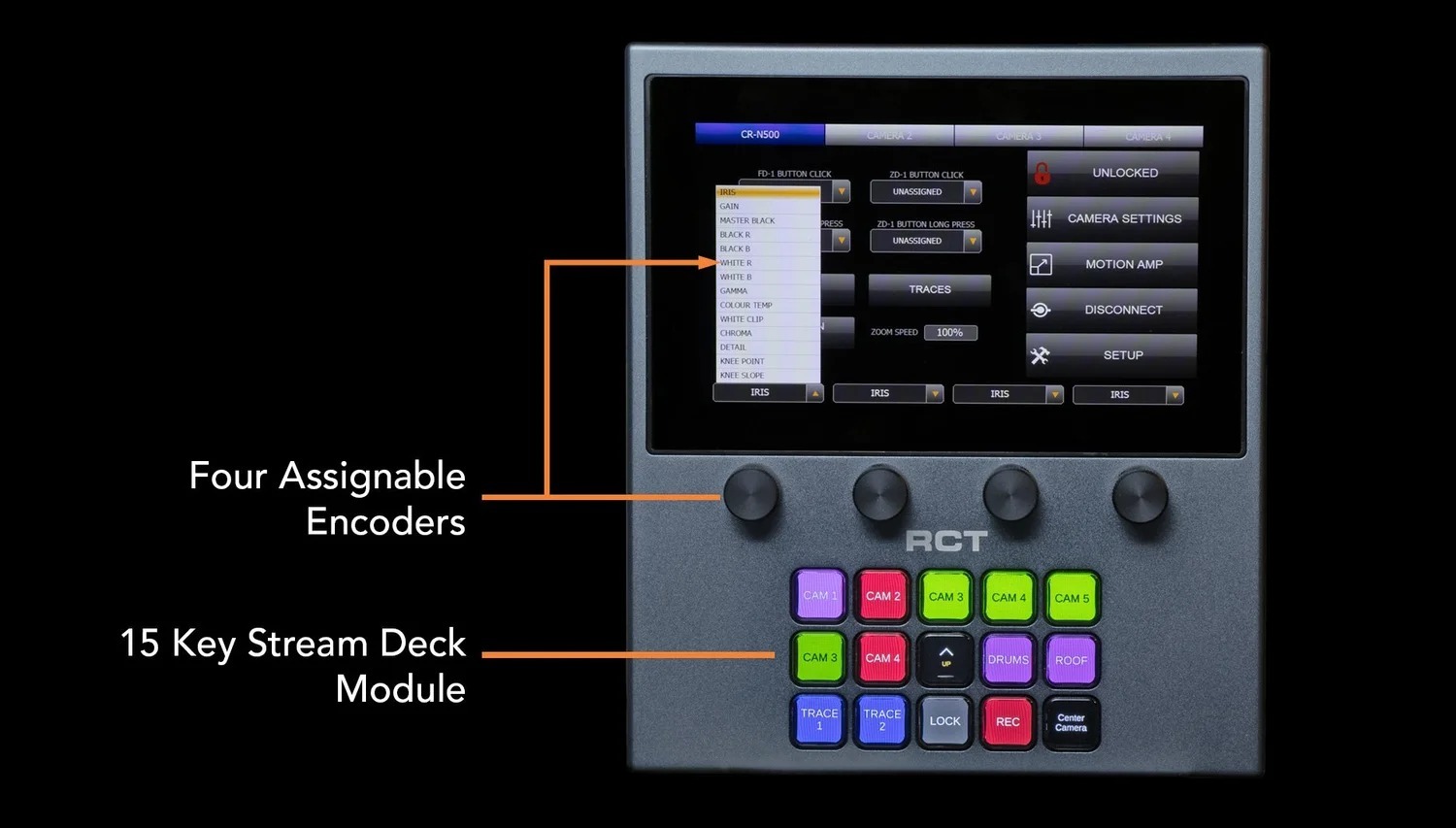

FR-4 chassis
FR-4 feature view
Operating system Microsoft Windows 11
Installed Software Bitfocus Companion
Supported equipment Panasonic AW-UE160, AW-UE150A, AW-UE100, AW-UR100, AW-UE80
Sony ILME-FR7, BRC-AM7
Canon CR-N700, CR-N500, CR-N300, CR-X300
Movicom Robyhead D1 and D2
CPU Intel J1900CPU, Quad core, 2GHz
Storage and Memory 128GB SSD, RAM 4GB DDR3
Network card Integrated gigabit network card
WIFI 2.4Ghz (5Ghz option)
Display 7 inch, 1024 x600, 10 point capacitive touchscreen
Input/Output 1xVGA, 1xHDMI, 1xLAN, 2xUSB2.0, 2xUSB3.0, 1xAudio Output, 1xDC12V, 1xWIFI
Operating temperature -10°C-60°C
Storage temperature -20°C-70°C
Operating humidity 5-85% (Non condensing)
Enclosure Machined aluminum with anodized finish
Power supply DC12V/5A
Power consumption <60W
Accessories Tabletop base (10” Field Display and Fluid Head are not included)

A Better Way to Control PTZ Cameras

For operators who need low-latency response, precise movement, and a more natural control experience, the FR-4 Fluid Remote Pan Bar Control System offers a forward-thinking alternative to joystick-based PTZ operation.

Want to learn more? Call us today at 512-251-7778 to talk to one of our experts.

Shop the FR-4 Fluid Remote
