Sony ILMEFX5B FX5 Cinema Camera
Compact Cinema Performance for Modern Productions
The Sony FX5 Cinema Camera combines advanced Cinema Line technology with a lightweight, creator-friendly design. Built around a newly developed 16.6MP full-frame stacked Exmor RS CMOS sensor and powered by Sony's next-generation BIONZ XR2 image processor with an integrated AI processing unit, the FX5 delivers exceptional image quality, impressive speed, and professional recording capabilities. Features such as Open Gate recording, internal X-OCN, and advanced autofocus make it an ideal solution for documentaries, commercial productions, branded content, live events, and independent filmmaking.
Positioned Between the FX3 and FX6
The FX5 expands Sony's Cinema Line by bridging the gap between the compact FX3 and the production-focused FX6. While sharing a similarly compact form factor with the FX3, the FX5 introduces a more advanced 16.6MP fully stacked 5K sensor for faster readout and improved overall performance. It also adopts many of the workflow enhancements and cinema-focused controls found in the FX6 while maintaining a portable design suited for handheld and mobile productions.
Key Features
- 16.6MP (5K) full-frame stacked Exmor RS CMOS sensor
- BIONZ XR2 processor with integrated AI processing unit
- Internal 5K Open Gate recording up to 60 fps
- Internal X-OCN LT, C1, and C2 recording formats
- Three Base ISO settings: 800, 4000, and 12800
- Over 16 stops of dynamic range with Dual Gain
- Advanced AI subject recognition autofocus
- 3.5" 4-axis multi-angle touchscreen LCD
- Professional monitoring tools including waveform, vectorscope, false color, histogram, zebra, and focus map

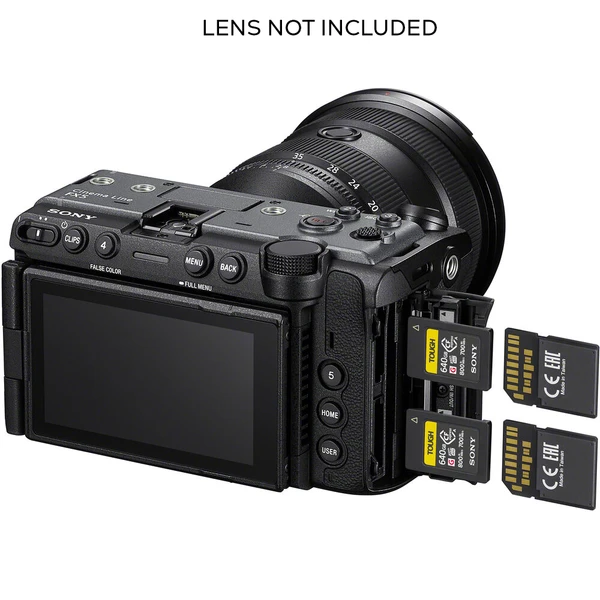

- Dual CFexpress Type A / SD card slots
- Dual USB-C ports, Ethernet, full-size HDMI, microphone and headphone connections
- High-capacity NP-SA100 battery with over two hours of recording time
AI-Powered Autofocus
Equipped with Sony's latest AI processing technology, the FX5 delivers intelligent autofocus capable of recognizing and tracking people, animals, and birds with exceptional accuracy. Improved low-light autofocus performance helps maintain reliable focus even in challenging lighting conditions, allowing filmmakers to concentrate on capturing the moment.
High-Speed Full-Frame Image Sensor
The newly developed 16.6MP stacked Exmor RS CMOS sensor provides faster readout speeds that significantly reduce rolling shutter artifacts while improving overall image responsiveness. Combined with Sony's advanced color science, the sensor produces natural skin tones, smooth highlight roll-off, impressive low-light performance, and cinematic image quality suitable for demanding productions.
Professional Open Gate Recording
Internal 5K Open Gate recording captures the full sensor area in a 3:2 aspect ratio, providing additional flexibility for reframing, visual effects, and delivering multiple aspect ratios from a single recording. This expanded capture area is especially beneficial for cinematic workflows and content creators producing for multiple platforms.
Internal X-OCN Recording
The FX5 supports internal X-OCN recording, preserving outstanding color fidelity and tonal information while maintaining efficient file sizes. Multiple recording options allow users to balance image quality and storage requirements based on production needs.
- X-OCN LT: Designed for feature films, documentaries, television, commercials, and live productions.
- X-OCN C1: Optimized for online content, documentaries, and extended recording workflows.
- X-OCN C2: Provides maximum recording efficiency for longer shooting sessions.
Professional Connectivity
The FX5 integrates easily into professional production environments with dual USB-C ports, Ethernet connectivity, full-size HDMI output, microphone and headphone jacks, and compatibility with Sony's optional XLR Handle Unit. Timecode support allows accurate synchronization for multicamera productions, while optional accessories further expand production capabilities.
Improved Camera Control
A redesigned control layout includes six customizable buttons, an intuitive multifunction dial, and Sony's updated BIG 6 cinema interface, allowing quick access to commonly used settings. The streamlined menu system offers a familiar experience for Cinema Line users while remaining approachable for creators transitioning from Sony Alpha cameras.
Enhanced Image Stabilization
Designed for handheld filmmaking, the FX5 incorporates advanced in-body image stabilization with improved roll correction and Dynamic Active Mode electronic stabilization. These technologies work together to reduce camera shake, producing smoother footage while minimizing the need for external stabilization equipment.

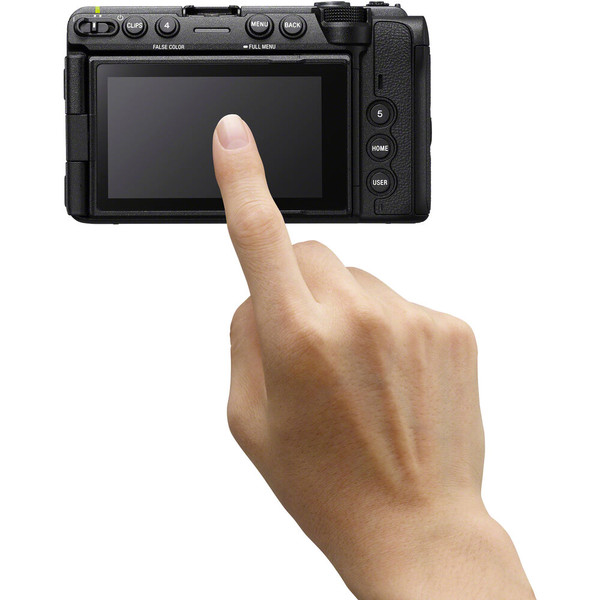

Advanced Monitoring Tools
The 3.5-inch widescreen 16:9 touchscreen features a versatile 4-axis design for comfortable viewing from virtually any shooting angle. Built-in professional monitoring tools—including waveform, vectorscope, false color, histogram, zebra, peaking, focus map, and anamorphic de-squeeze—provide accurate exposure and focus monitoring directly within the camera without requiring external displays.
Expanded Dynamic Range
With Dual Gain architecture delivering more than 16 stops of dynamic range, the FX5 preserves highlight detail while maintaining clean shadow performance. Three Base ISO settings of 800, 4000, and 12800 provide greater flexibility across a wide range of lighting environments, helping filmmakers achieve consistent image quality from bright daylight to low-light productions.
