Vizrt 3Play Vivid 10-Channel UHD 4K Replay System with Control Panel (2 RU)
Product Highlights:
- Instant Replay Solution
- 10-Channel Replay up to UHD 4K
- 8 External Inputs, 2 Outputs
- NDI and SDI Connectivity
- 3-Way Multiviewer Output
- 8TB Internal Storage, Control Panel

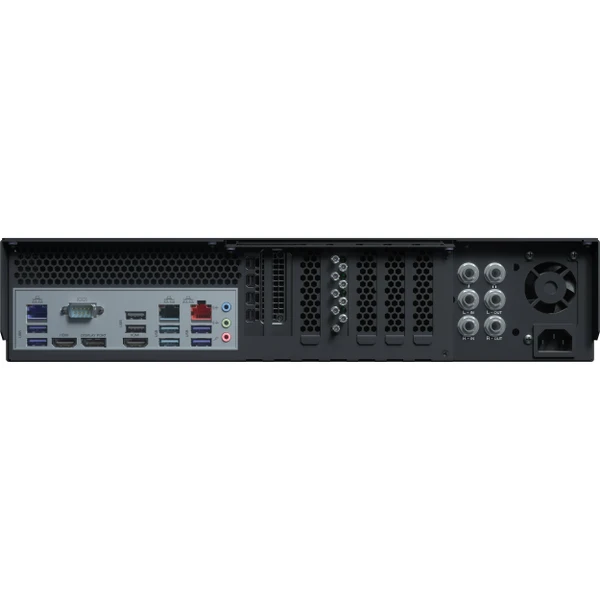

Vizrt 3Play Vivid Replay System with Control Panel (2 RU)
Vizrt 3Play Vivid Replay System with Control Panel (2 RU)
Professional Instant Replay Production
The Vizrt 3Play Vivid is a 10-channel instant replay system designed for sports, broadcast, and other live productions. It combines intuitive capture, review, playback, and keying capabilities with an included control panel for direct operation and smooth transitions between scenes.
UHD 4K Capture and Playback
The system can deliver up to 10 replay channels at UHD 4K while handling eight concurrent capture streams. It supports as many as eight external inputs and two outputs, with simultaneous recording and playback available through NDI or the system's internal 8TB storage.
Flexible Replay and Collaboration Tools
NDI and SDI connectivity support integration into IP-based and traditional production environments. Operators can share playlists in real time, create browser-based controls with LivePanel, and configure functions across NDI, GPI, and MIDI protocols. Replays can be viewed at normal speed, in slow motion, or frame by frame, with zoom and tracking tools available for examining important details.
Telestration, Media Management, and Automation
Built-in NDI Telestrator Pro technology enables commentators and coaches to annotate video and trigger immediate replays from connected devices. Events and clips can be tagged with detailed metadata for faster retrieval, while macro automation and automatic clip exporting simplify recurring commands, content organization, and storage management.
Monitoring and Social Media Integration
A configurable monitoring environment supports a dedicated user-interface display, two configurable multiviewers, selectable workspace layouts, customizable viewports, and multi-angle replay previews. Highlights and screen captures can also be shared to supported social platforms directly from the replay system.
| Vizrt 3Play Vivid Specs |
|---|
| System Type |
Instant Replay System |
| Replay Channels |
Up to 10 Channels at UHD 4K |
| Concurrent Capture Streams |
8 |
| External Inputs and Outputs |
Up to 8 External Inputs and 2 Outputs |
| Switching Type |
Software |
| Processing Resolution |
UHD 4K at 25/29.97/50/59.94 |
| Color Processing |
4:2:2 YCbCr |
| Audio Processing |
96 kHz, 32-Bit |
| Video Inputs |
8x BNC (3G-SDI, 12G-SDI, HD-SDI) |
| Input Video Formats |
BNC
UHD 4K at 25/29.97/50/59.94 fps
1080p at 25/29.97/50/59.94 fps
1080i at 50/59.94 fps
720p at 25/29.97/59.94 fps |
| Audio Inputs |
1x 1/4" TRS Stereo
1x 1/4" TRS Mic |
| Embedded Audio Input |
SDI |
| Video Outputs |
3x DisplayPort
2x RJ-45 (NDI) |
| Audio Outputs |
1x 1/4" TRS Stereo
1x 1/4" TRS |
| Multiview Output |
3-Way Multiview |
| Other I/O |
2x USB-A 2.0
5x USB-A 3.1/3.2 Gen 2 |
| Video Standard Compliance |
SMPTE 424M/424M-A |
| Internal Storage |
8TB |
| Wireless Connectivity |
Wi-Fi |
| Power I/O |
1x USB-C (5 VDC at 3 A) Input/Output |
| Power Consumption |
500 W Power Supply |
| Rack Form Factor |
2 RU |
| Dimensions (W × H × D) |
19 × 3.5 × 19.57" / 48.3 × 8.9 × 49.71cm |
| Weight |
32 lb / 14.5kg |
What's Included:
- Vizrt 3Play Vivid Replay System with Control Panel (2 RU)
- Limited 1-Year Manufacturer Warranty
